UTAS

AVAILABLE CONFIGURATIONS

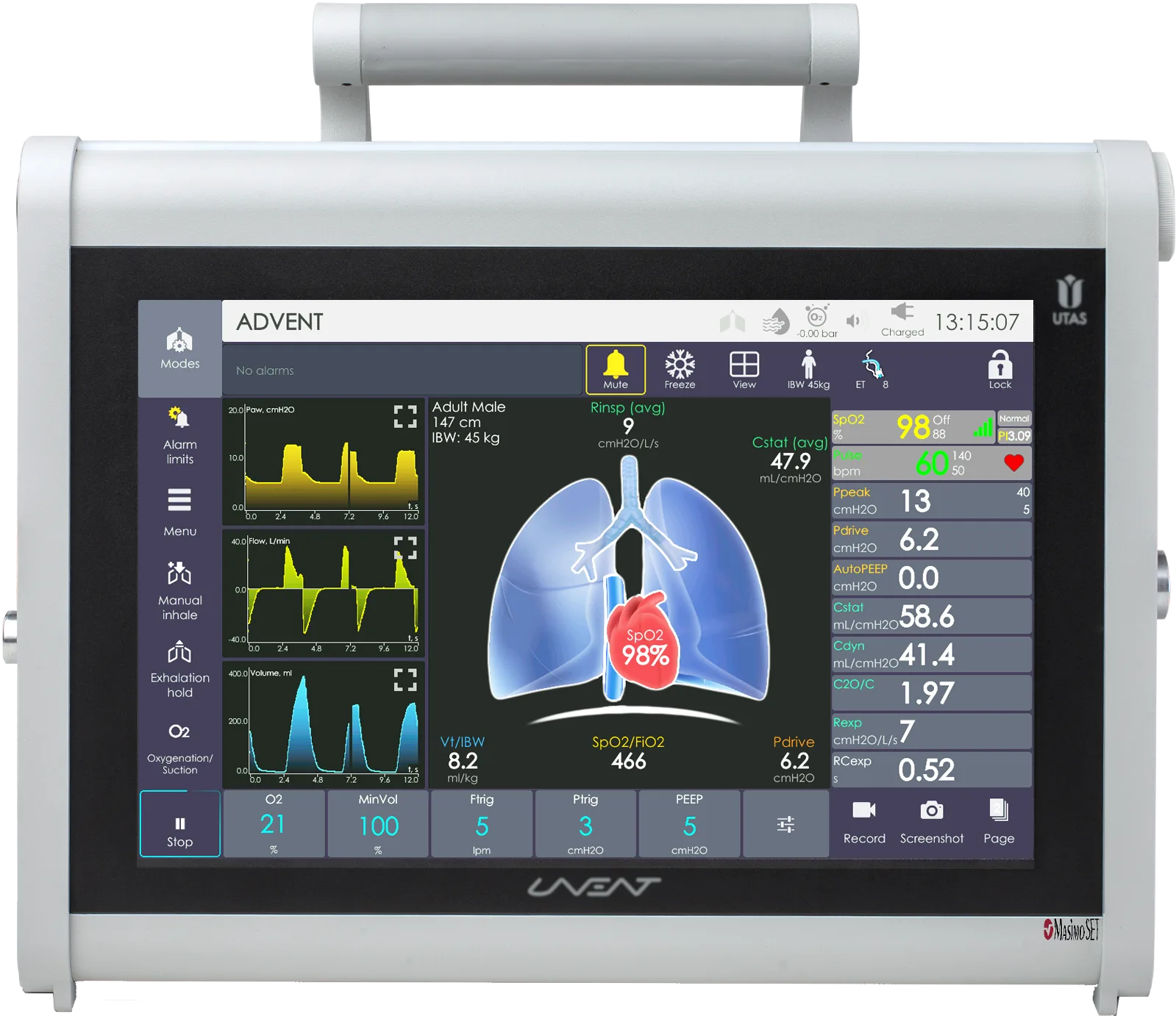

• UVENT-T-S
• UVENT-M-S
• UVENT-A-S

FEATURES

• ICU ventilator with a high-performance, low-noise built-in turbine.
• Designed for adult, pediatric, and neonatal patients.
• Invasive and non-invasive ventilation.
• Compatible with high- and low-pressure oxygen sources.
• Advanced adaptive intelligent ventilation modes: AdVent™ and ProVent™.
• High-flow oxygen therapy (HFOT).
• Helmet ventilation (helmet NIV).
• Dedicated cardiopulmonary resuscitation (CPR) mode.
• AutO₂ function for automatic adjustment of oxygen concentration.
• SBT – spontaneous breathing trial
• High-resolution touchscreen with an intuitive interface.
• Compatible with external devices such as patient monitors, video laryngoscopes, lung ultrasound (POCUS), and the additional 22" UniScreen™ display.

TECHNICAL SPECIFICATIONS

• Invasive and non-invasive ventilation for adult, pediatric, and neonatal patients.
• Calibration-free ultrasonic oxygen sensor with a permanent service life.
• Automatic compensation for leaks, compliance, resistance, and altitude.
• Internal lithium-ion battery with up to 4 hours of runtime.
• Multi-level audible and visual alarms.
• USB connectivity and HL7 protocol for hospital integration.
• Intubation support
• Support tool for CPR maneuvers

INTEGRATED MONITORING

• Up to 100 parameters monitored in real time.
• Log of up to 10,000 events.
• Integrated monitoring of:
  • SpO₂ (Masimo or Nellcor).
  • CO₂ (mainstream or sidestream).
  • Lung mechanics.
  • Gas exchange.
  • Volumetric capnography.
  • Airway resistance
  • Static, dynamic, chest wall, and lung tissue compliance
  • Patient work of breathing (WOB).
  • Esophageal pressure (Pes).
  • Transpulmonary pressure.
  • Auxiliary pressure (Paux).
• Trends and breath-by-breath analysis.
• Export of screenshots and logs via USB.
• Log of up to 10,000 events.
• Simultaneous display of more than 5 waveforms and respiratory loops.

DIMENSIONS

• Main touchscreen display: 12.1 inches
• Additional UniScreen™ display (optional): 22 inches

• High-performance built-in turbine for operation independent of central compressed air.
• Compatible with high- and low-pressure oxygen sources.
• Designed for high-acuity intensive care.
• Optional UniScreen™ system: a second 22-inch medical display for expanded clinical viewing.
• Allows simultaneous display of more than 85 monitored parameters.
• Can display more than 5 physiological waveforms simultaneously in real time.

• Compact configuration for mobility and out-of-hospital transport.
• Built-in turbine.
• Ultra-compact, lightweight design.
• Optimized for intrahospital transport and ambulances.
• Same ventilation and monitoring platform as the UVENT-S series.

• Pneumatic configuration for fixed hospital infrastructure
• Electropneumatic system powered by compressed air and oxygen for precise, stable ventilation.
• Ideal for the ICU, operating rooms, post-anesthesia recovery, and intrahospital transport of critically ill patients.
• High pneumatic precision.

Features:

• For adult, pediatric, and neonatal patients; ideal for surgical settings
• Expanded channel set through UniPort technology
• Continuous patient monitoring
• Slim design with an intuitive touchscreen interface
• Bed-to-bed data view
• Effective support in anesthesiology (records)
• Can connect to a second 22" display for expanded parameter viewing

Technical Specifications:

• Multi-level audible and visual alarms
  • User-adjustable maximum and minimum limits. Priorities: “Information,” “Notice,” “Warning,” “Crisis”
• At least 720 hours of trends
• Basic parameters and advanced parameter extension with UniPort technology
  • BIS, NMT, CO2, IBP, C.O., ICG, EEG, and multigas monitoring (AAg+O2)
• Up to 3 hours of battery life

UM 300-10-S

• 10" touchscreen display.
• Available with a variety of mounting options

UM 300-15-S

• 15" touchscreen display.
• Integrated thermal printer

UM 300-20-S

• 20" touchscreen display.
• Integrated thermal printer

FEATURES

• Integrates up to 32 monitors via wireless or wired connection.
• Parameters displayed in real time.
• Continuous parameter recording: 72-hour trends, mini-trends, and automatic recording of all parameters when an alarm occurs.
• Patient database.
• Transfer of stored data to external medical information systems (HL7).
• Visual and audible alarms.
