X-ray

Shimadzu

MobileDart Evolution MX9v

MOBILE X-RAY SYSTEM

Contact
Features.

Its compact design and operational efficiency deliver speed and advanced support in critical care areas such as the NICU, ICU, operating room and emergency department.
The system can be configured in two versions:

Without a secondary display on the tube head (MX9v standard version)
With a secondary display on the tube head (MX9v premium version)
Technical specifications.

Collapsible column that improves visibility while driving the unit and makes positioning easier in tight spaces.
"Inch Mover" function allows precise positioning of the unit from any direction using two buttons built into the collimator.
FPD rechargeable on the unit, with anti-theft lock.
Second monitor on the tube head.
3D camera.
Artificial intelligence (AI) function designed to optimize the visualization and verification of tubes, lines and catheters in mobile radiographic exams.
AI function that enables identification of objects left behind after surgery, improving patient safety.
EZy-Rad Pro

DIGITAL X-RAY SYSTEM

Contact
Features.

Offers a compact design that simplifies installation in tight spaces, requiring a minimum space of 2.7 m × 1.8 m.
Can be plugged into a standard 120 V electrical outlet.
Technical specifications.

486 preconfigured anatomical programs
The system is configurable and lets you choose among three different models, adapting to the specific needs of each clinical setting.
The system includes a motorized mechanism that moves and adjusts the X-ray tube at the push of a button.

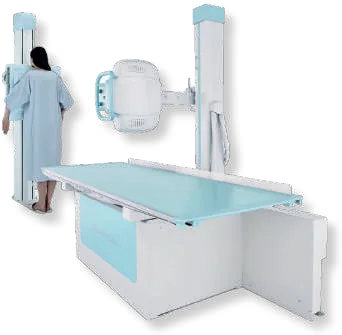

RADspeed Fit

DIGITAL X-RAY SYSTEM

Contact
Features.

Brings high-end system functions together with intuitive operation.
A practical, versatile solution for clinics seeking quality and efficiency.
The system can be configured in two digital versions, maintaining the same mechanical performance of the unit (VIVIX-S and CXDI).
Specifications.

432 preconfigured anatomical programs for efficient exposures.
Wide range of X-ray tube movement and rotation, ideal for patients on a stretcher or in a wheelchair.
Automatic exposure control (AEC).
Fixed-height table with floating tabletop.
Dose management (DAP).
Removable grid.

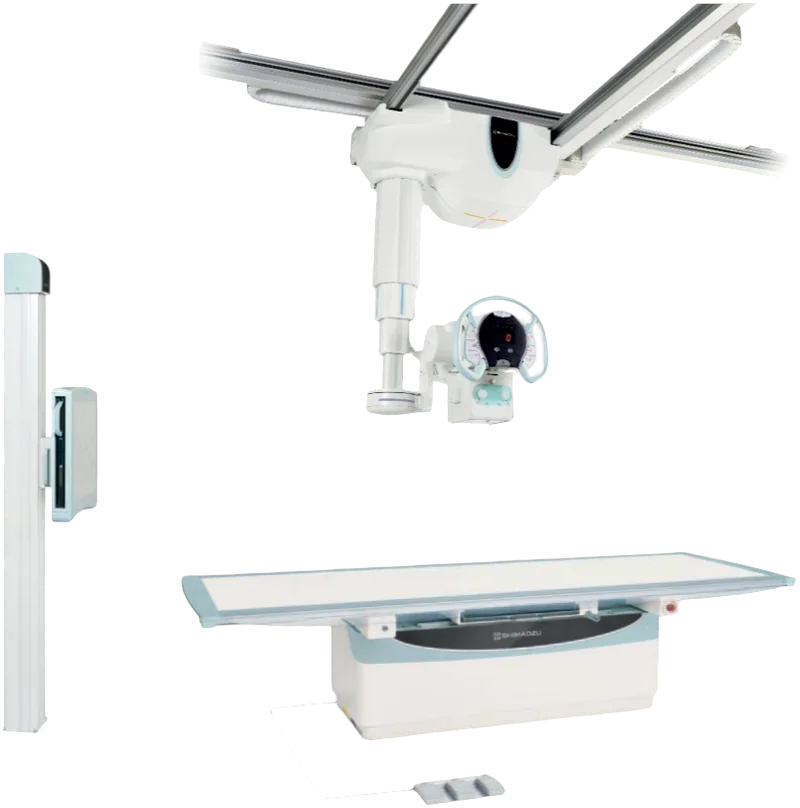

RADspeed Pro MC version

Digital X-ray system

Contact
Features.

The MC configuration includes a ceiling-suspended X-ray tube system that offers a wide range of motion, allowing great technical flexibility and comfortable patient access. This design supports agile, precise positioning, contributing to efficient, high-quality image acquisition.
The system can be configured in two digital versions, maintaining the same mechanical performance of the unit (VIVIX-S and CXDI).
Specifications.

Wide vertical travel of the X-ray support.
Free rotation of the X-ray tube.
Vertical tracking.
Removable grid.
Automatic exposure control (AEC).
Variable-height table with floating tabletop.
Dose management (DAP)

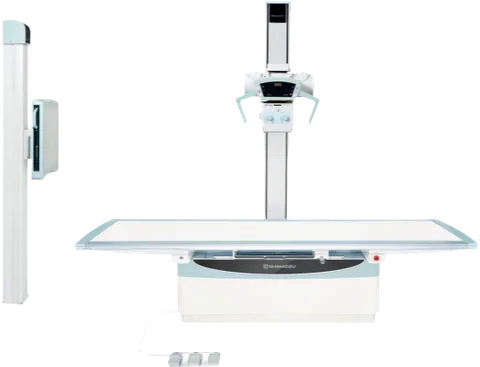

RADspeed Pro MF version

DIGITAL X-RAY SYSTEM

Contact
Features.

The MF configuration is designed for compact installations with a floor-mounted, floor-to-wall or floor-to-ceiling tube support, offering a robust, efficient solution for general radiography. Its design optimizes the use of space without sacrificing performance, providing reliable operation and high image quality
The system can be configured in two digital versions, maintaining the same mechanical performance of the unit (VIVIX-S and CXDI).
Specifications.

Removable grid.
Automatic exposure control (AEC).
Variable-height table with floating tabletop.
Dose management (DAP)

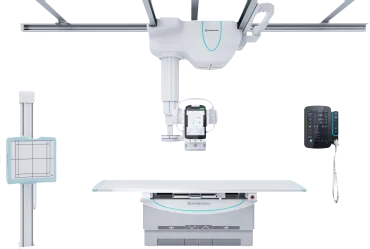

RADspeed Pro SR5 version

Digital X-ray system

Contact
Features.

Provides versatile solutions for creating intuitive, comfortable exam rooms tailored to the demands of different healthcare settings.
Its design focuses on improving the experience of both the patient and the operator, creating a more efficient examination environment.
The system can be configured in two digital versions, maintaining the same mechanical performance of the unit (VIVIX-S and CXDI).
Specifications.

Automatic vertical and horizontal tracking.
Auto-positioning.
POWER GLIDE function (power assist) (optional)
"VISION SUPPORT" function: integrates an optical camera in the collimator that shows the position of the patient in real time and detects whether the patient has moved.
Removable grid.
Automatic exposure control (AEC).
Variable-height table with floating tabletop.
Dose management (DAP)

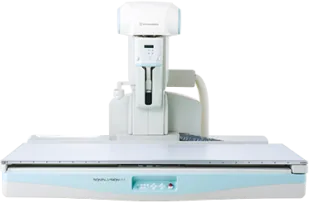

Sonialvision G4

DIGITAL X-RAY AND FLUOROSCOPY SYSTEM

Contact
Features.

Combines high image quality with advanced technology (incorporating Artificial Intelligence) to improve accuracy and safety in fluoroscopic procedures.
Designed to accommodate wheelchair patients and patients with a larger body size, this system supports a wide variety of studies in specialties such as orthopedics, general radiography, barium studies, endoscopy, urology and angiography. In addition, its design, optimized for complex studies, improves workflow and reduces post-processing times.
Specifications.

Compression cone
SCORE PRO Advance: Enhances the area of interest and reduces noise in real time.
SLOT Advance: Long-view images with auto-stitching.
T-Smart PRO: Reduces metal artifacts using artificial intelligence.
Low radiation dose: Delivers high-quality images at reduced radiation levels.
DSA
Configurable SID of 150 cm or 180 cm.
Noise reduction by motion tracking.
Pulsed and continuous fluoroscopy.
Virtual and iris collimation.
Tilting table, +/- 90°

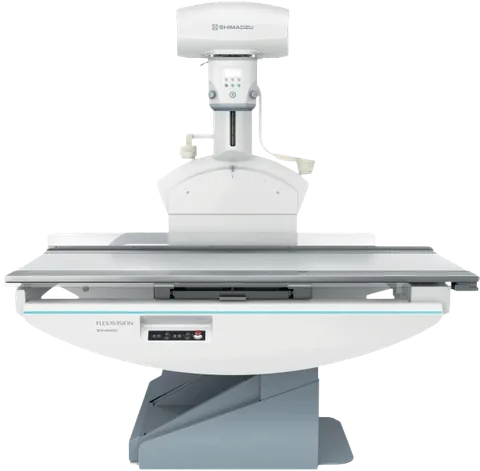

Flexavision F4

Digital X-ray and fluoroscopy system

Contact
Features.

System that integrates general radiography and fluoroscopy, offering clinical versatility and an efficient workflow.
Specifications.

Wireless 17" x 17" detector
Tilting table from –30° to + 90°
Dose management
DSA
Function that allows previously acquired images to be overlaid on real-time fluoroscopy, facilitating navigation during the procedure and improving clinical accuracy.
Pulsed and continuous fluoroscopy.

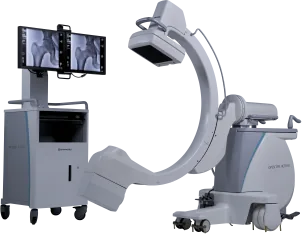

Opescope Acteno FD

C-ARM X-RAY AND FLUOROSCOPY SYSTEM

Contact
Features.

Thanks to its electromagnetic brake system and color-coded navigation, every rotation, angulation or panning movement is performed with precision and speed.
Compact, stable design that is easy to transport.
Specifications.

DSA
Monitor cart with foldable monitor option.
Pulsed fluoroscopy.
Removable grid
"Low dose" mode
Octagonal and virtual collimation.
Laser pointer.
C-Memory function that can memorize two sets of image rotation positions, collimator position and X-ray conditions to reduce the fluoroscopy required for repositioning.

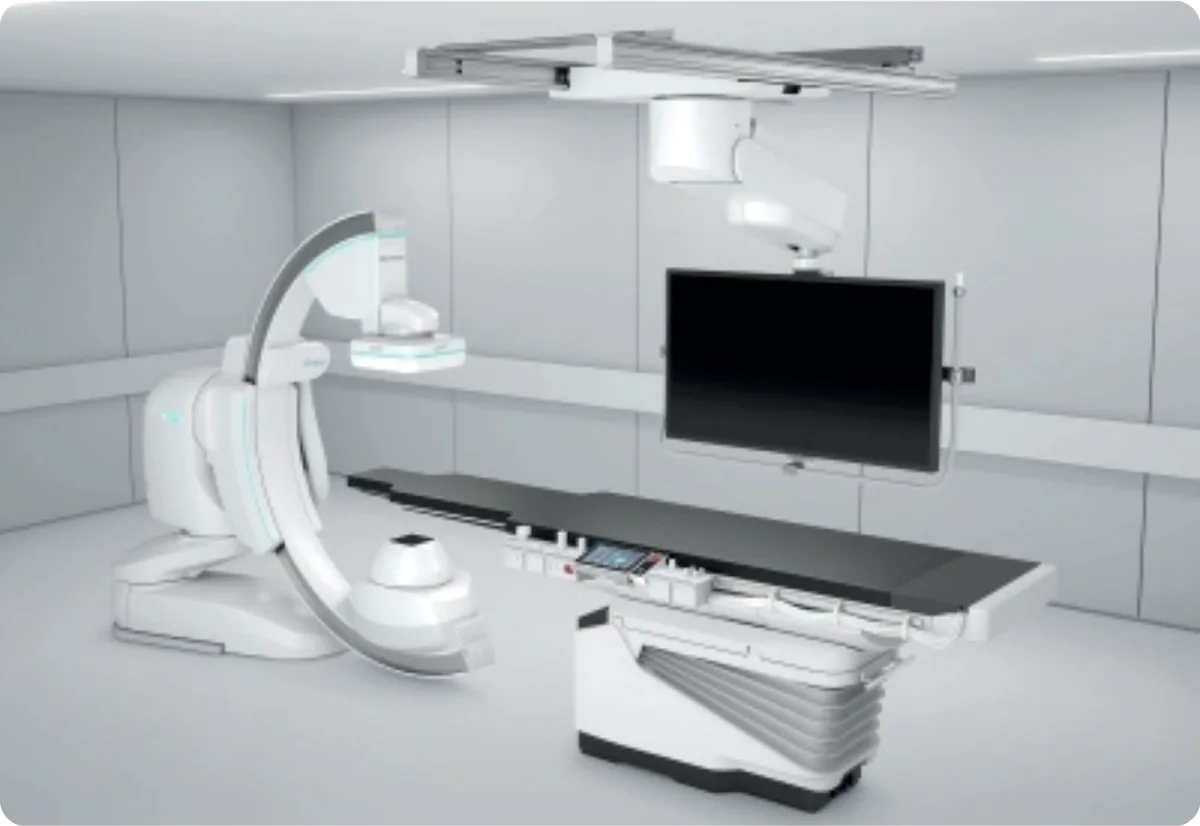

Trinias series with SCORE Opera

ANGIOGRAPHY

Contact
Features.

Shimadzu has designed Trinias SCORE Opera to offer innovative solutions to the current challenges of specialized medical treatment centers, building its development on three main pillars:

ALARA design: Based on the As Low As Reasonably Achievable principle, focused on reducing radiation exposure, improving image quality and increasing procedural accuracy, while also helping to reduce the operational burden on staff.
LEAN design: Provides intuitive, flexible operation, including voice control, that streamlines workflow, shortens procedure times and creates a more efficient, comfortable environment for the user.
SUSTAINABLE design: Platform designed to stay current through continuous updates, avoiding premature obsolescence and ensuring a longer service life for the system.

Two versions available: Score Opera Smart (2.6 MHU) and Score Opera Grand (6.3 MHU).
Available models:

Floor-mounted (F12/F8): Broad coverage for a variety of anatomical areas.

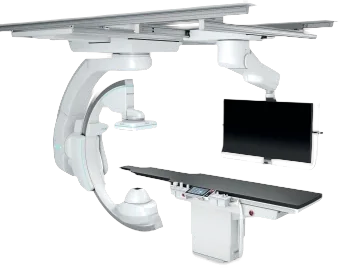

Ceiling-mounted (C16/C12/C8): Imaging flexibility; the C16 model allows panel rotation for complex studies.
Biplane (B12/B8): Simultaneous visualization in two planes with minimal radiation and greater efficiency.
Specifications.

SMART Touch & SMART Control & Dose-eye Live: Intuitive touch interface with precise dose control.
SCORE StentView / StentShot: Optimized assessment before, during and after stent placement.
SCORE RSM: DSA-type technique that is extremely tolerant to motion and reduces exposure dose by up to 50%.
SCORE Chase: Extended-view images without post-processing.
FLEX-APS: Real-time correction of complex body motion.
SCORE MAP: Advanced real-time mapping techniques.
3D platform: Reconstruction and analysis for fast, safe decisions.
SMART Voice: Allows up to 18 angiography functions to be operated hands-free, letting the operator stay focused on the patient.
