Patient Monitoring

Spacelabs

Vital Signs Monitors

They include the ICS (Intesys Clinical Suite), which improves the efficiency, functionality, and flow of clinical information

Xprezzon

91393 BEDSIDE MONITOR

Contact
Features.

For adult, pediatric, and neonatal patients, as well as for the perioperative environment
Screen brightness dims intuitively when ambient light decreases.
On/off controls and touch interface.
Technical specifications.

Audible and visual alerts with alarm lights built into the display

Technical and physiological

19-inch high-resolution touchscreen
Waveform and parameter monitoring (Up to 6 waveforms and 20 parameters)
Graphic and tabular trend time

Tabular: From 1 minute to 1 hour
Graphic: From 1 hour to 24 hours

Up to 12-lead diagnostic ECG, Resp, SpO2, NIBP, Temp
4 invasive pressures and cardiac output
4 USB ports for optional peripherals.
Ethernet 10/100 Base-T network connection.
Dual DVI-I video output for primary and secondary displays.
2 RS-232 ports for data communication and technical service.

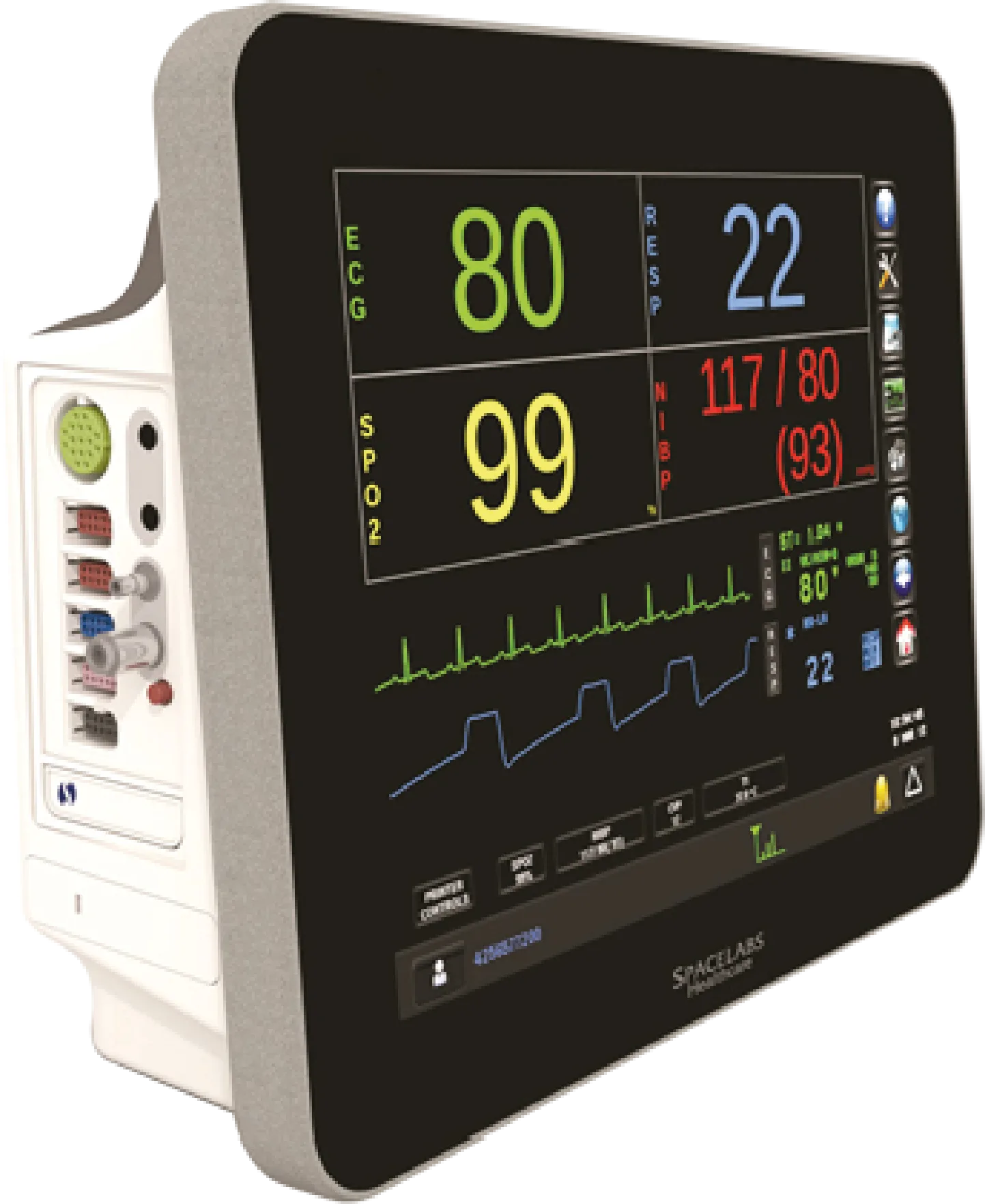

Qube

91390 COMPACT MONITOR

Contact
Features

For adult, pediatric, and neonatal patients
Small and lightweight, offering portability and accessibility
12.1-inch high-resolution touchscreen
Audible and visual alerts with alarm lights built into the display.
On/off controls and touch interface.
Technical specifications

Audible and visual alerts with alarm lights built into the display

Technical and physiological

Waveform and parameter monitoring (Up to 6 waveforms and 20 parameters)
Graphic and tabular trend time

Tabular: From 1 minute to 1 hour
Graphic: From 1 hour to 24 hours

Up to 12-lead diagnostic ECG, Resp, SpO2, NIBP, Temp
4 invasive pressures and cardiac output
4 USB ports for optional peripherals.
Ethernet 10/100 Base-T network connection.
DVI-I video output for primary and secondary displays.
1 RS-232 port for data communication and technical service.
Compatible with the Qube docking station (optional).
Long-life battery with a two-battery option, lasting up to 8 hours

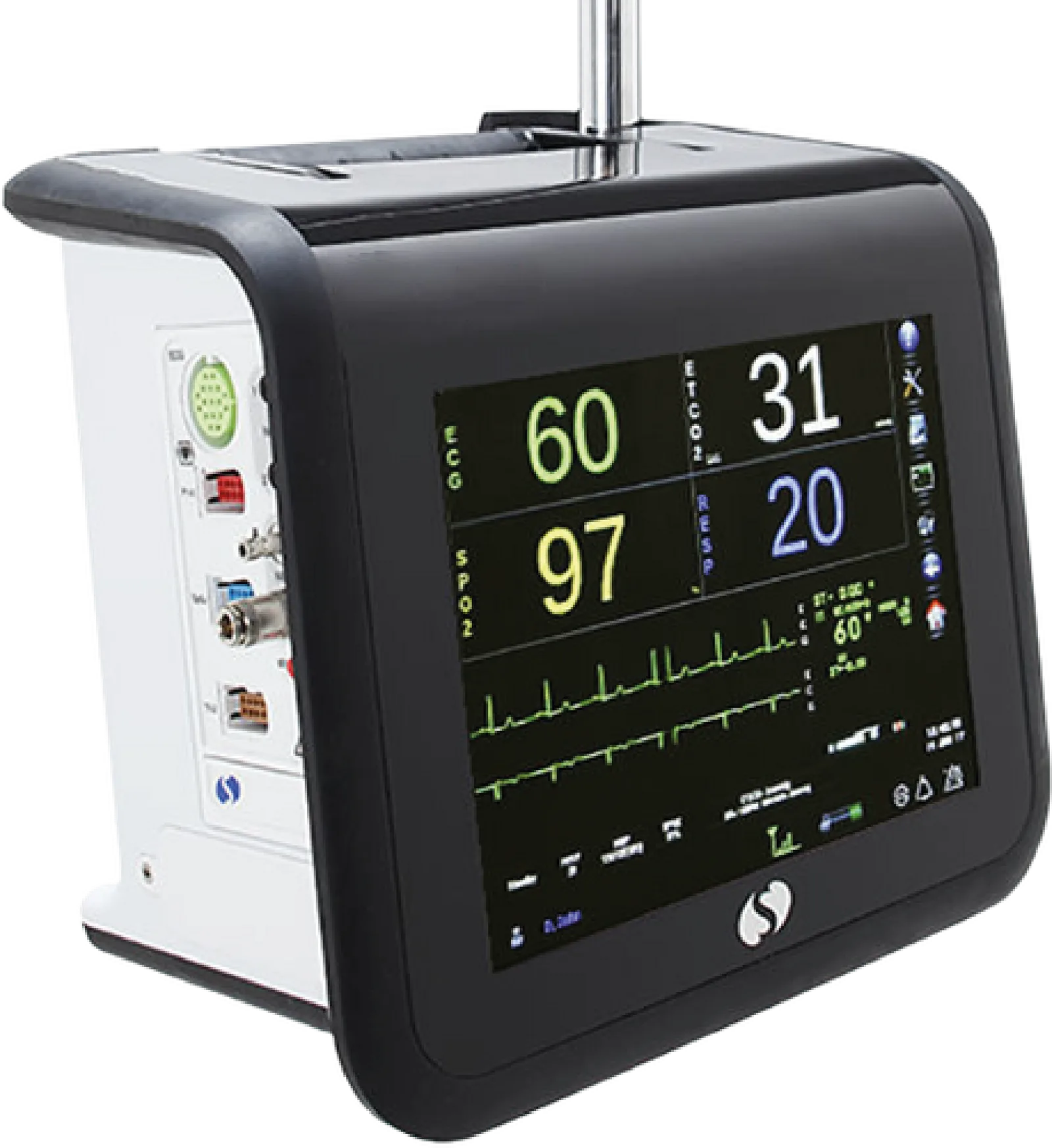

Qube Mini

91389 MONITOR

Contact
Features

For adult, pediatric, and neonatal patients
Audible and visual alerts with alarm lights built into the display.
Lightweight, rugged design
A caregiver can carry the monitor, view the display, and see the patient at the same time.
8-inch high-resolution touchscreen
On/off controls and touch interface.
Technical specifications

Audible and visible alarms

Technical and physiological

Waveform and parameter monitoring
Graphic and tabular trend time

Tabular: 1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, or 1 hour.
Graphic: 1 hour, 2 hours, 6 hours, 12 hours, or 24 hours.

Up to 12-lead diagnostic ECG, Resp, SpO2, NIBP, Temp
Connections for a printer, barcode reader, thermometer, and peripherals.
Ethernet 10/100 Base-T and Wi-Fi 802.11 a/b/g (optional).
RS-232 for data transfer and technical service.
Integrated clamp for IV pole mounting, compatible with GCX systems: The integrated clamp allows mounting on IV poles or bed rails without the need for additional mounts.
Battery with up to 5 hours of continuous operation

Spacelabs

Central Monitoring Stations

Xhibit

CENTRAL STATION (96102)

Contact
Features:

Centralized monitoring of adult, pediatric, and neonatal patients.
Real-time remote viewing of vital signs and waveforms.
High-resolution touchscreen for fast, intuitive navigation.
On-screen virtual notes to improve communication among clinical staff.
Monitors up to 48 patients in real time and manages the connection of up to 254 devices through an advanced network infrastructure.
Scalable architecture for hospitals of different sizes.
With Intesys Clinical Suite (ICS) integration, it provides access to vital data at any time and from different areas, optimizing decision-making.
Operates on up to three displays simultaneously, including one dedicated to network control and data management, for more efficient, centralized monitoring.
Technical Specifications:

Compatible with Spacelabs Healthcare bedside monitors and telemetry systems.
Identify alarm severity by color, flashing, and tones
Compatible with Spacelabs Healthcare bedside monitors and telemetry systems.
Display of physiological parameters, trends, and clinical events.
Individual alarm and limit settings for each patient.
Retrospective review of clinical information and waveforms.
Centralized data management for multiple hospital areas.
Dimensions:

21.5-inch high-resolution LCD touchscreen.
Includes Ethernet ports, USB ports, display ports, a keyboard, and a mouse.
Clinical Applications:

Intensive Care Unit (ICU).
Operating Rooms and Post-Anesthesia Recovery.
General Inpatient Care.
Neonatal and Pediatric Units.

Looking for Spacelabs equipment?

Our specialists will help you choose the model and configuration your institution needs.

Get in touch
